900 TT 1978-79
 |
 |
Spare Parts List on Sale
 |
XX00097 Parafango ant. Front mudguard |
 |
2AR0001 Parafango post. Rear mudguard |
 |
7CR0001 Monoscocca TT 1977 One-piece seat/tank unit TT 1977 |
 |
7AR0001 Monoscocca TT 1978 One-piece seat/tank unit TT 1978 |
 |
7BR0001 Monoscocca TT 1979 One-piece seat/tank unit TT 1979 |
 |
XX00001 Tappo serbatoio Tank cap |
 |
XXR0039 Tappo serbatoio tipoaeronautico Aereonautic type tank cap |
 |
XX00099 Rubinetto sxØ 16×1 Left-side fuel tap Ø 16×1 |
 |
6X00031 Rubinetto dxØ16×1 Right-side fuel tap Ø16×1 |
 |
XXR0036 Cupolino racing (senza foro per faro) Racing fairing (no headlight aperture) |
 |
7XR0020 Semicarena Racing Racing half fairing |
 |
XX00014 Plexiglas per cupolino racing Racing windshield |
 |
XX00069 – Plexiglas per semicarena Racing Windshield for Racing half-fairing |
 |
7AR0002 Carena TT 900 1978 / TT600 Fairing for TT 9001978 / TT600 |
 |
7BR0002 Carena 1979 Fairing 1979 |
 |
XXR0059 Plexiglas per carena Windshield for fairing |
 |
XXR0072 Vasca sottocoppa Oil Conteiner |
 |
XX00108 Viti per carena Ø6×20 testa Ø15 Screw for fairing Ø6×20 head Ø15 |
 |
XX00109 Viti per carena Ø6×18 testa Ø22 Screw for fairing Ø6×18 head Ø22 |
 |
XX00126 Contagiri Veglia racing replica Replica Racing tachometer Veglia |
 |
XXR0016 Cavo per contagiri Veglia Tachometer cable Veglia |
 |
7XR0010 Supporto carena e strumenti Fairing and instruments support |
 |
XX00189 Supporti forcella Ø38 mm Fork support Ø38 mm |
 |
XX00128 Cuscinetto scatola sterzo Stearing-head bearing |
 |
XXR0079 – Tappi forcella con registro molla Ø38 mm. Pair of fork caps with adjuster Ø38 mm |
 |
XX00041 Asta forcella Ø38 L= 580 Fork tube Ø38 L= 580 |
 |
6X00023 Asta forcella L= 590 – Ø38 mm Fork tube L= 590 – Ø38 mm |
 |
XXR0080 – Perno ruota ant. racing – Front wheel racing pin |  |
XX00033 Coppia semimanubrio Ø38 Pair of clip-on handlebars Ø38 |
 |
XXR0069 Gomme semimanubrio lunghe Pair of clip-on grips |
 |
8XR0001 Leva frizione sagomata con supporto Shaped clutch lever with support |
 |
8XR0002 Leva pompa frizione/freno sagomata Shaped clutch/brake leve |
 |
XXR0015 Comando acceleratore rapido Quick-action throttle control |
 |
XX00035 – Coppia cavi acceleratore per carburatori Ø40 SS – Pair of throttle cables |  |
XX00036 Cavo frizione Clutch cable |
 |
7XR0009 Kit pedane e leve racing Racing footrest and lever |
 |
7XR0011 Telaio tipo DASPA Cr.-Mo. Cr.Mo.DASPA frame type |
 |
XXR0007 – Forcellone post. Cr-Mo largo – Chromomolybdenum wide swinging-arm |  |
XX00124 Perno forcellone Fork pin |
 |
XXR0076 Ganasce racing per forcellone Racing swinging-arm jaw |
 |
XXR0081 – Perno ruota post. racing – Rear racing wheel pin |  |
XXR0008 – Coppia ammortizzatori ORSP (tipo Ceriani) L=330 – Pair of ORSP shock-absorbers |
 |
XX00055 Supporto pinza freno Ø229 Rear brake caliper plate Ø229 |
 |
XX00095 Supporto pinza freno Ø280 Rear brake caliper plate Ø280 |
 |
7XR0001 Tubi freno racing ant./post. Rear and front racing brake tube |
 |
3X00002 Disco freno post. Ø229 Rear brake disc Ø229 |
 |
8XR0037 Pompa freno post. Rear brake pump |
 |
XX00186 Pinza freno serie oro dx P08 Brake caliper right P08 |
 |
XX00187 Pinza freno serie oro sx P08 Brake caliper left P08 |
 |
XX00007 Pastiglie freno P08 Pair of front brake pads P08 |
 |
XX00136 Rrevisione pinza freno P08 P08 brake caliper seal kit |
 |
XX00137 Set perni/spurghi pinza freni P08 P08 brake caliper pin/bleed-nipple kit |
 |
XX00135 – Set revisione pompa freno ant. PS15 – Front breake master cylinder seal kit PS15 |  |
XX00071 Disco freno ant./post. Ø280 4 fori Front/rear brake disc Ø280 4 holes |
 |
XX00156 – Disco freno ant./post Ø 280 (6 fori) – Front/rear brake disc Ø 280 (6 holes) |  |
XXR0085 – Disco freno per modifica 300 mm – Modify 300 brake disc |  |
XX00005 Mozzo ruota ant. competo Front wheel hub complete |
 |
XX00043 Mozzo ruota post. completo Rear wheel hub complete |
 |
XX00240 – Mozzo centrale ant/post. per ruota a raggi – Front/rear central hub for spoked wheel |  |
XX00241 Supporto disco ant. 4 fori – Support front disc 4 holes |
 |
XX00242 Supporto disco post. Ø229 4 fori Rear disc Ø229 – 4 holes support |
 |
XX00243 Supporto disco post. Ø280 4 fori Rear disc Ø280 – 4 holes support |
 |
XX00245 Supporto disco post. Ø280 6 fori Rear disc support Ø280 6 holes |
 |
XX00044 Portacorona post. completo Rear sprocket carrier complete |
 |
XX00246 Scatola parastrappi ruota post. – Box rear wheel sprocket |
 |
XX00045 Parastrappi Cush-drive rubber |
 |
XXR0033 Kit rapporti leggeri (520) Racing light sprockets kit (520) |
 |
XXR0044 Corona in ergal Z=35 (530) Rear sprocket Z=35 (530) |
 |
XXR0045 Corona in ergal Z=36 (530) Rear sprocket Z=36 (530) |
 |
XXR0046 Corona in ergal Z=37 (530) Rear sprocket Z=37 (530) |
 |
XXR0047 Corona in ergal Z=38 (530) Rear sprocket Z=38 (530) |
 |
XXR0048 Corona in ergal Z=39 (530) Rear sprocket Z=39 (530) |
 |
XXR0049 Corona in ergal Z=40 (530) Rear sprocket Z=40 (530) |
 |
XX00255 Ferma Corona Stops rear sprocket |
 |
XXR0041 Pignone Z=15 (520) Engine sprocket Z=15 (520) |
 |
XXR0042 Pignone Z=16 (520) Engine sprocket Z=16 (520) |
 |
XX00067 Catena 110 maglie (con OR) Chain 110 links (with o-ring) |
 |
XXR0040 Catena 520 (110 maglie) Chain 520 (110 links) |
 |
XXR0084 Mozzo ruota post. rapido racing set Quick rear wheel hub racing set |
 |
XX00047 Ghiera scarico Exhaust pipe ringnut |
 |
XX00190 Guarnizione scarico tt. Gasket exhaust |
 |
7XR0002 Kit scarichi bassi Low-level exhaust system |
 |
7XR0015 Collettore 2 in 1 2 in to 1 exhaust system |
 |
7XR0016 Terminale scarico aperto Open muffler |
 |
7XR0017 Terminale scarico semisilenziato Silencer muffler |
 |
XXR0014 – Collettori asp. per carburatore elastico – Inlet duct kit for flexibly carburettor |  |
XXR0004 Manicotto per collettore elastico Flexible carburettor coupling |
 |
XXR0001 – Carburatore elastico Ø40 dx – Flexibly mounted carburettor Ø40 Right |  |
XXR0002 – Carburatore elastico Ø41 dx – Flexibly mounted carburettor Ø41 Right |  |
XXR0011 – Carburatore elastico Ø40 sx – Flexibly mounted carburettor Ø40 Left |
|
XXR0012 – Carburatore elastico Ø41 sx – Flexibly mounted carburettor Ø41 Left |  |
XXR0020 Coppia alberi a cammes ORSP Pair of camshafts ORSP |
 |
XXR0021 Coppia alberi a cammes tipo NCR Pair of camshafts NCR type |
 |
XXR0025 Valvola aspirazione Ø42 Inlet spring valve Ø42 |
 |
XXR0027 Valvola scarico Ø38 Exhaust Desmo valve Ø38 |
 |
XXR0026 Valvola aspirazione Ø 44 Inlet valve Ø 44 |
 |
XXR0028 Valvola scarico Ø40 Exhaust valve Ø40 |
 |
XX00170 Guida valvole +0,08 Valve guide +0,08 |
 |
XX00171 Guida valvole +0,12 Valve guide +0,12 |
 |
7XR0005 Pistone Racing Ø86.4 Piston Racing Ø86.4 |
 |
7XR0018 Pistone Ø86.8 Piston Ø86.8 |
 |
XXR0005 Pistone Racing Ø90 Piston Racing Ø90 |
 |
XXR0051 Pistone Racing Ø 92 Piston Racing Ø 92 |
 |
XX00082 Canna per cilindro Ø86 Cylinder sleeve Ø86 |
 |
XXR0023 Canna per cilindro Ø90 Cylinder sleeve Ø90 |
 |
XXR0052 Canna per cilindro Ø92 Cylinder sleeve Ø92 |
 |
7XR0004 Bielle racing L=145 Racing connecting rods L=145 |
 |
7XR0019 Bielle racing Carillo L=145 Racing connecting rods Carillo L=145 |
 |
XX00054 Cuscinetto albero motore Main bearing |
 |
XXR0030 Volano motore Racing Racing lightweight flywheel |
 |
XXR0031 Cambio racing ravvicinato Gearbox racing |
 |
XXR0070 – Ingranaggio avviamento per cambio racing – Starter gear for racing gearbox |  |
XX00061 – Set dischi frizione leggeri (ad olio) – Lightweight clutch disc set (in oil) |  |

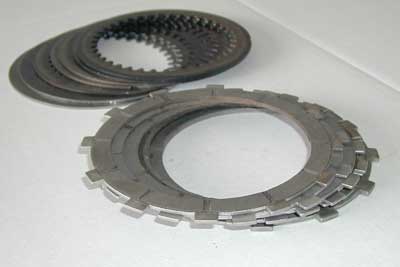

XXR0037 Set dischi frizione ORSP (a secco) ORSP clutch disc set (dry clutch) |
 |
XXR0060 – Set dischi frizione sinterizzati (a secco) – Sintered clutch disc set (dry clutch) |
 |
XXR0038 – Set dischi frizione in carbonio (a secco) Carbon clutch disc set (dry clutch) |
 |
XXR0032 Frizione a secco 1° serie >1977Dry clutch >1977 |
 |
7XR0008 – Frizione a secco (accensione Bosch) 1978>- Dry clutch (Bosh ignition) 1978> |  |
XX00191 – Set pick-up per modifica accensione Bosch Pick-ups for modified Bosch ignition |
 |
XX00085 Coppia pick-up per accensione ORSP Pick-up for ORSP ignition |
 |
XX00084 – Kit supporto pick-up per modifica accensione – Kit pick-up support for modified ignition |
 |
XX00087 Bobina per modifica accensione Coil for modified ignition |
 |
XX00086 – Centralina elettronica ORSP step 1 – ORSP electronic ignition amplifier step 1 |
 |
8XR0085 – Centralina elettronica ORSP step 1 – Electronic ignition amplieifer step 1 |  |
8XR0086 – Centralina elettronica ORSP step 2 – Electronic ignition amplieifer step 2 |  |
8XR0087 – Centralina elettronica ORSP step 3 – Electronic ignition amplieifer step 3 |
 |
XXR0073 – Bobina per doppia accensione elettronica ORSP – Electronic twin output ignirion coil |  |
XX00181 Set dadi e rosette Hexagonal nut and washer set |
 |
7XR0007 Pompa olio maggiorata VR Large capacity oil pump VR |
 |
XX00105 Kit tenuta olio Oil seal kit |
 |
XX00104 Serie guarnizioni motore Gasket set |
|
AC00008 Colore Rosso Ducati Ducati Red color |
|
AC00009 Colore Verde Ducati Ducati Green color |
|
AC00007Colore Argento Ducati Ducati Silver color |
|
AC00012 Colore Oro Ducati Ducati Gold color |
